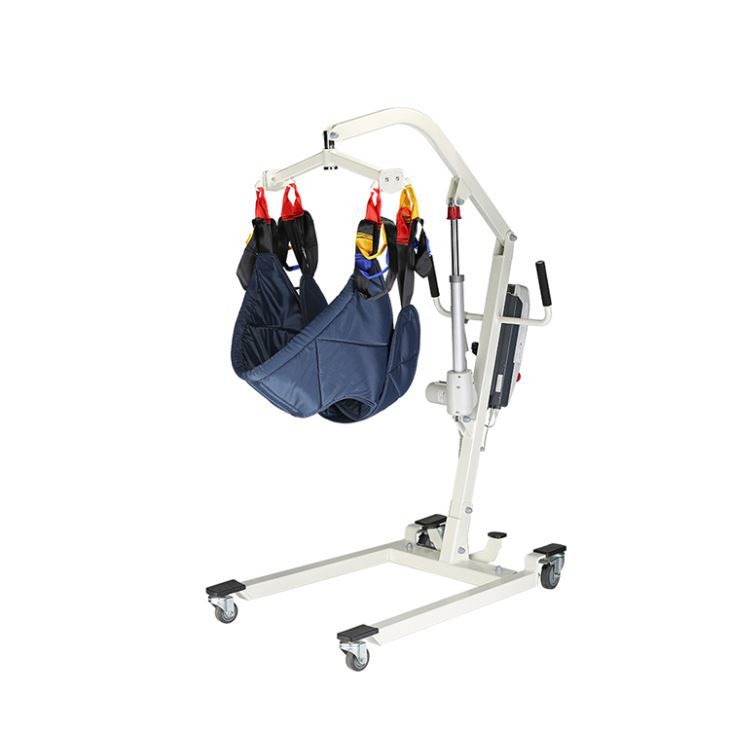

Transport Chair Strong Frame Mobile Patient Lift

1.Electric patient hoist
2.Maximum loading capacity can reach 180kg-200kg

Availability:
Quantity:


THE5778 Medical hydraulic patient lift equipment hoist electric patient lift sling

THE5778 TOPMEDI manual and electric patient hoist lift


Product Description

Specifications(CM)

Motor

24V/8000N

Charger

24V/2.0A

Lifting Speed

6.7mm/s

Maximun Fork Distance

800mm

Lifting Distance

850mm-1750mm

Product size

1200*620*1750mm

Loading capacity

180kg

Measurment

1250*650*340mm

GW(kg)

45


1.Electric patient hoist

2.Maximum loading capacity can reach 180kg-200kg


Patient lift is a kind of nursing equipment to help patients transfer safely and smoothly. It is used for short-distance shifting. By controlling the button to move up and down, the nurses can easily transfer the patients, greatly reduce the working intensity of the nurses, at the same time, expand the range of activities of the disabled and improve the quality of life.


Clinical significance:

With mesh hanger, it can easily help disabled people to toilet, get up and down to bed, bathe, shampoo, go out and so on.


Scope of application:

Nursing homes, rehabilitation centers, hospitals, community centres for the elderly, etc.


Product characteristics:

01) High safety: equipped with emergency suspension device and manual emergency descent device, to ensure patient safety, high-quality universal medical casters, flexible steering and easy control, locking rear wheel foot brakes, stable and secure, using high stability seamless fish scale welding method, safe and beautiful;

02) Strong practicability: base split-leg switch design, handle control electric opening and closing, suitable for all kinds of wheelchairs, seats, toilets and other matching use width adjustment;

03) Lifting range: patients or elderly people can be raised directly from the ground;

04) The operation is simple: the patient can be transferred easily by controlling the push-up and push-down of the button.

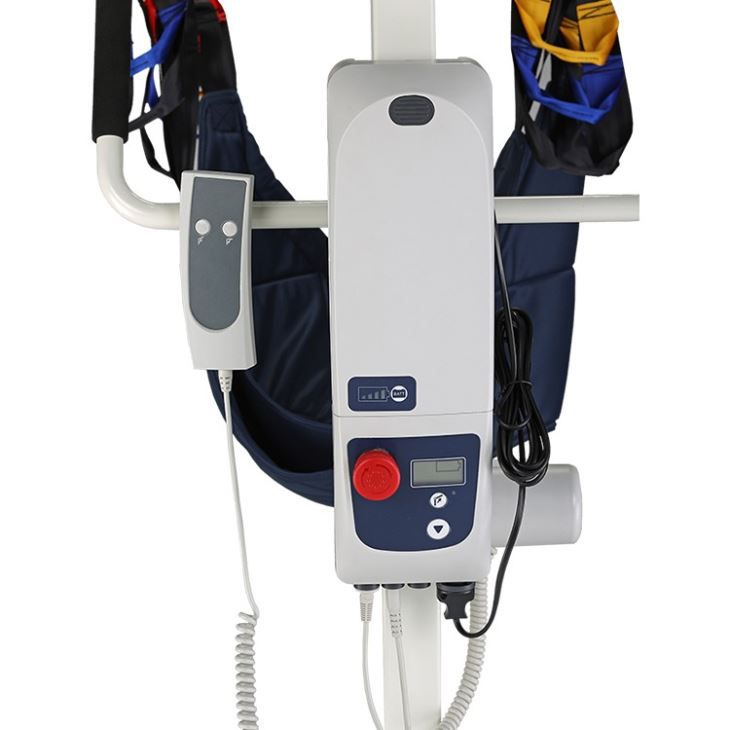

05) Humanized setting of double push rod: in case of emergency, emergency stop by hand can be adopted, then push down the push rod slowly through emergency knob manually, and the width of the product can be suitable for wheelchairs of various sizes.
